SR
Perfect for manufacturers who need efficient deburring and surface refinement without heavy-duty deslagging, the Surfex SR delivers a clean, uniform finish straight from upstream cutting processes. Designed as a must-have addition to sheet metal production lines, it enhances paint adhesion, improves part quality, and ensures a refined final touch with minimal processing.
- Maximum Width (mm):600, 800, 1000, 1300, or 1600
- Abrasive Modules:Drum Heads x1, Rotary Brushes up to 8
- Processable Materials:Stainless steel, carbon steel, aluminum, brass and cold plate
- Power (kW):14, 32, 38, 60, or 65

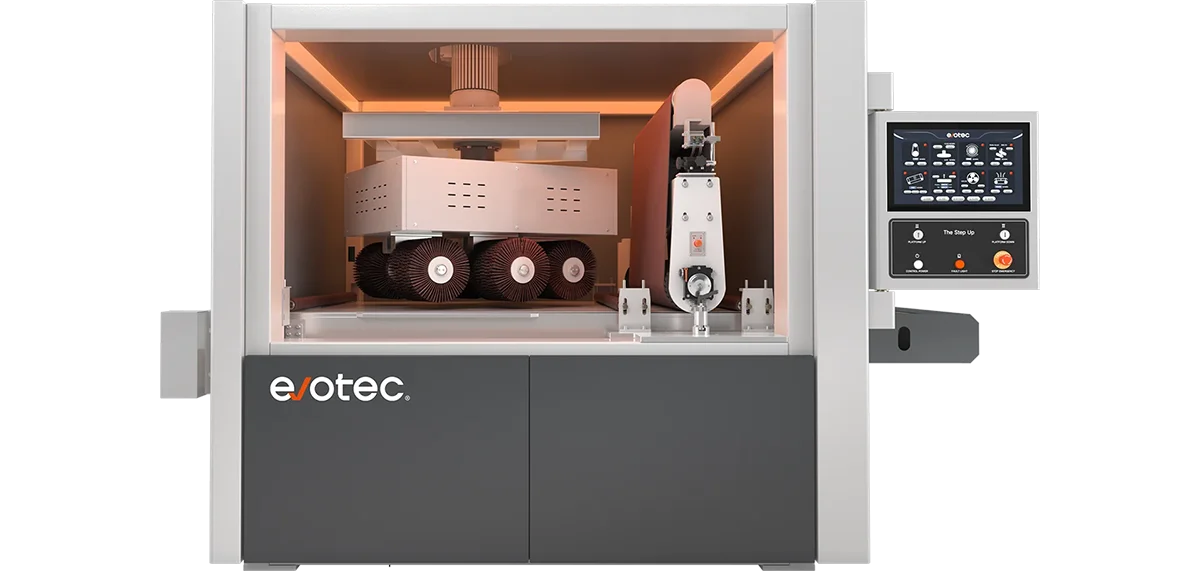

The Surfex SR delivers high-quality non-directional finishing and precise edge rounding in a compact, easy-to-integrate system. Designed for fine and lightweight parts, it ensures smooth, uniform surfaces that enhance coating adhesion and downstream efficiency. Simple to operate yet powerful in performance, SR brings professional-grade finishing to every fabrication workflow.
Compact and consistent
Compact, efficient, and clean, Surfex SR specializes in smooth edge rounding and non-directional surface finishing for small and medium-sized parts. It ensures consistent surface quality and easy coating preparation with stable, moderate processing intensity.
Technical Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit.

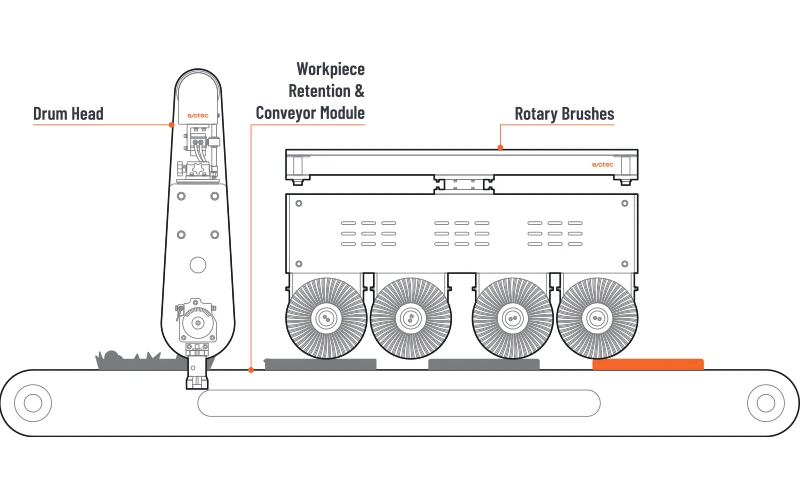

Principle
Drum Head (Wide Sanding Belt) Module
This deburring module features a wide sanding belt combined with a large-diameter drum, offering an expanded contact area for more effective material removal. Leveraging Evotec’s automated abrasive compensation, belt balancing, and tracking correction, the module efficiently performs high-precision surface brushing, deslagging, and the removal of rigid burrs from laser cutting, punching, and shearing processes.
Rotary Brush Module
Rotary brushes are arranged in multiple offset rows to ensure full coverage across the workpiece. While the brushes assist in deburring and light deslagging, their primary function in this configuration is edge rounding and non-directional grain finishing. Driven by a central rotation axis, each brush spins at high speed and strikes the surface uniformly, delivering consistent chamfering and R-radius edge rounding across both external and internal contours.
Workpiece Retention & Conveyor Module
The conveyor system features a high-damping belt with variable frequency speed control, ensuring smooth, stable transport during processing. Workpieces are securely held in place through a combination of pressure rollers and either high-negative-pressure vacuum adsorption or high-strength magnetic retention, depending on the material type. This system maintains precise alignment and stability throughout each finishing stage.
