SRS
The Surfex SRS is built for manufacturers seeking precise deburring, edge rounding, and a refined line-grain finish in a single, efficient process. Engineered to handle slag removal, burr elimination, and superior surface finishing, it ensures metal parts are fully prepped for coating, welding, and assembly. Whether processing stainless steel, carbon steel, brass, or aluminum, the Surfex SRS delivers consistent quality, efficiency, and reliability, making it a key asset in modern fabrication lines.
- Maximum Width (mm):800, 1000, 1300, or 1600
- Abrasive Modules:Drum Heads x2, Rotary Brushes up to 8
- Processable Materials:Stainless steel, carbon steel, aluminum, brass and cold plate
- Power (kW):39, 50, 79, or 88
The Surfex SRS delivers consistent line-grain finishing and refined edge rounding in a single, seamless workflow. Its triple-head configuration ensures smooth, linear surfaces and uniform textures across every part, ideal for aesthetic or high-adhesion applications. Compact, efficient, and precise, SRS is the trusted solution for consistent quality in modern metal fabrication.
Balanced performance that delivers reliable results
The Surfex SRS offers balanced performance across all quadrants—edge rounding, chamfering, surface treatment, and processing intensity. Its triple-head system ensures uniform line-grain textures and smooth contours, making it a versatile solution for consistent, high-quality results.
Technical Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit.

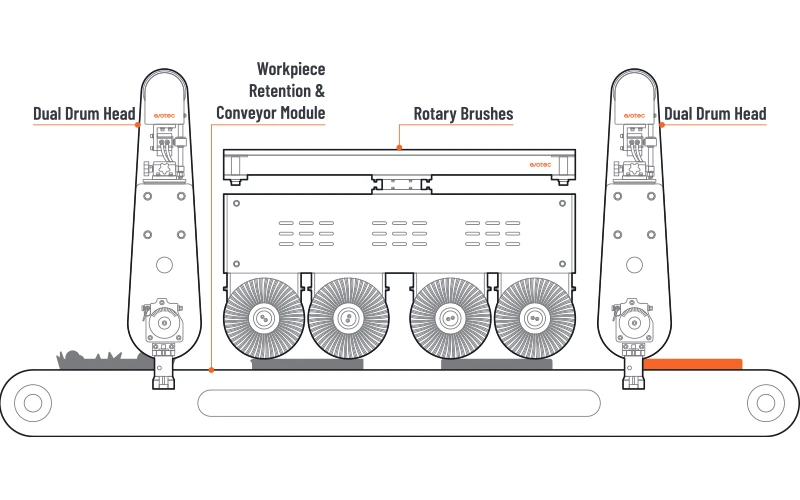

Principle
Drum Head (Wide Sanding Belt) Modules
Surfex SRS features two drum head modules—one at the front for deburring, deslagging, and surface brushing, and a second at the end of the conveyor for final line-grain finishing. Together, they enhance material removal while delivering a consistent linear surface texture ideal for aesthetic or post-processing applications.
Rotary Brush Module
Positioned between the two drum heads, this module consists of multiple offset rotary brushes that perform edge rounding, chamfering, and light surface refinement. The high-speed brush action ensures smooth contours, internal feature cleanup, and uniform R-radius edge profiles.
Workpiece Retention & Conveyor Module
The conveyor system features a high-damping belt with variable frequency speed control, ensuring smooth, stable transport during processing. Workpieces are securely held in place through a combination of pressure rollers and either high-negative-pressure vacuum adsorption or high-strength magnetic retention, depending on the material type. This system maintains precise alignment and stability throughout each finishing stage.
