SSR
Designed for exceptional surface finishing, the Surfex SSR delivers a flawless NDMF (non-directional grain finish) surface treatment while efficiently removing large burrs and slag. With consistent edge rounding and micro-burr removal, it enhances paint adhesion, reduces post-processing, and improves overall product quality. Built for efficiency and reliability, it helps manufacturers achieve premium finishes while streamlining production.
- Maximum Width (mm):800, 1000, 1300, or 1600
- Abrasive Modules:Drum Heads x2, Rotary Brushes up to 8
- Processable Materials:Stainless steel, carbon steel, aluminum, brass and cold plate
- Power (kW):39, 50, 79, or 88
The Surfex SSR represents the pinnacle of surface finishing performance. Its advanced triple-stage system removes micro burrs, smooths imperfections, and delivers a flawless non-directional surface finish. Designed for manufacturers demanding precision, consistency, and aesthetic excellence, SSR ensures every part meets the highest visual and functional standards.
Advanced non-directional finishing and micro-burr removal
Balanced and refined, Surfex SSR combines strong edge rounding and micro-burr removal with superior non-directional surface finishing. With stable processing intensity and smooth chamfering capabilities, it delivers high-end surface quality and coating-ready precision in every pass.
Technical Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit.

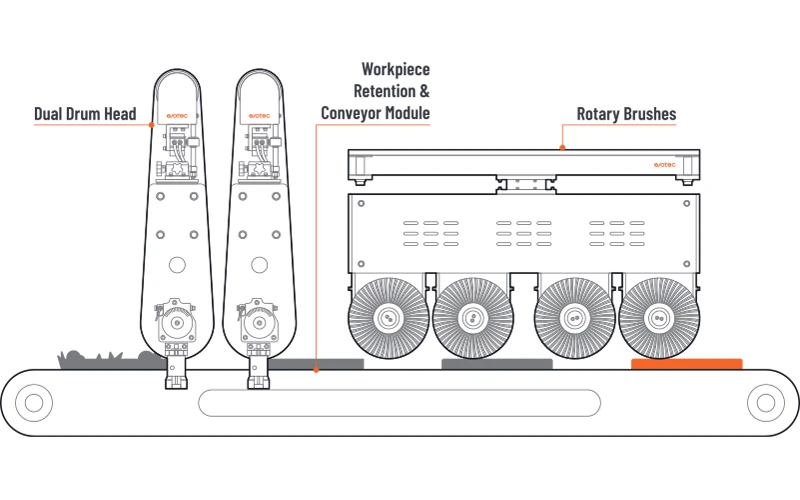

Principle
Dual Drum Head (Wide Sanding Belt) Module
The Surfex® SSR is equipped with two wide sanding belt drum heads arranged in sequence at the front of the machine. This dual-stage setup allows for the use of different grit levels to achieve a more refined surface finish while enhancing the effectiveness of deburring and deslagging. Together, the two drum heads remove vertical burrs, slag, and surface imperfections with greater precision before the workpiece reaches the final finishing stage.
Rotary Brush Module
Rotary brushes are arranged in multiple offset rows to ensure full coverage across the workpiece. While the brushes assist in deburring and light deslagging, their primary function in this configuration is edge rounding and non-directional grain finishing. Driven by a central rotation axis, each brush spins at high speed and strikes the surface uniformly, delivering consistent chamfering and R-radius edge rounding across both external and internal contours.
Workpiece Retention & Conveyor Module
The conveyor system features a high-damping belt with variable frequency speed control, ensuring smooth, stable transport during processing. Workpieces are securely held in place through a combination of pressure rollers and either high-negative-pressure vacuum adsorption or high-strength magnetic retention, depending on the material type. This system maintains precise alignment and stability throughout each finishing stage.
