Máquinas niveladoras de metales de precisión para cada aplicación
Desde láminas ultrafinas hasta chapas gruesas de 80 mm: metal plano y libre de estrés, listo para su próxima operación.

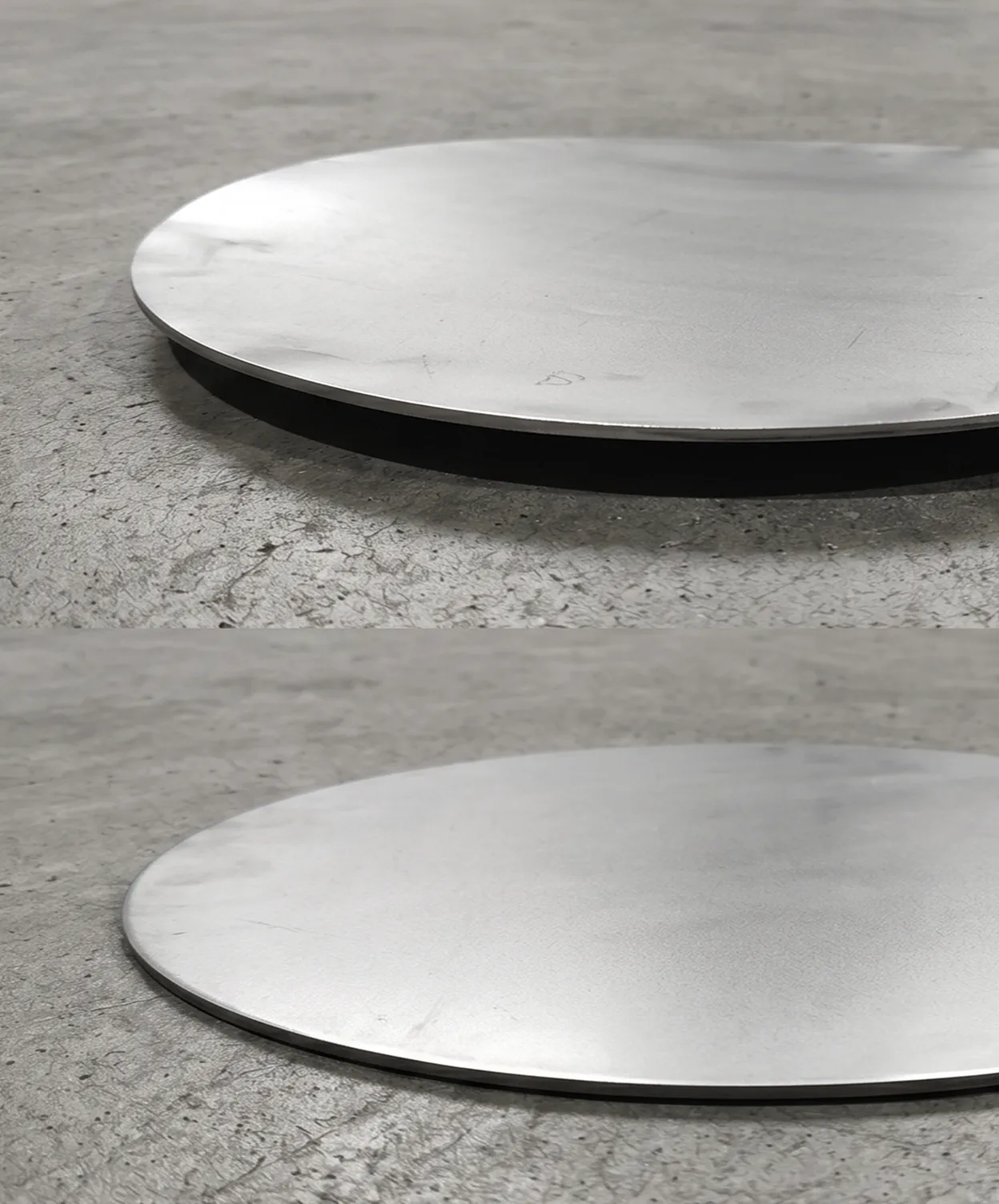

Metal plano. Mejores resultados.

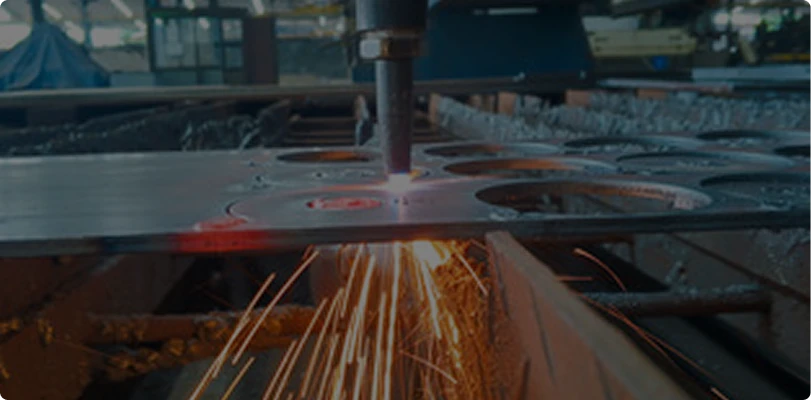

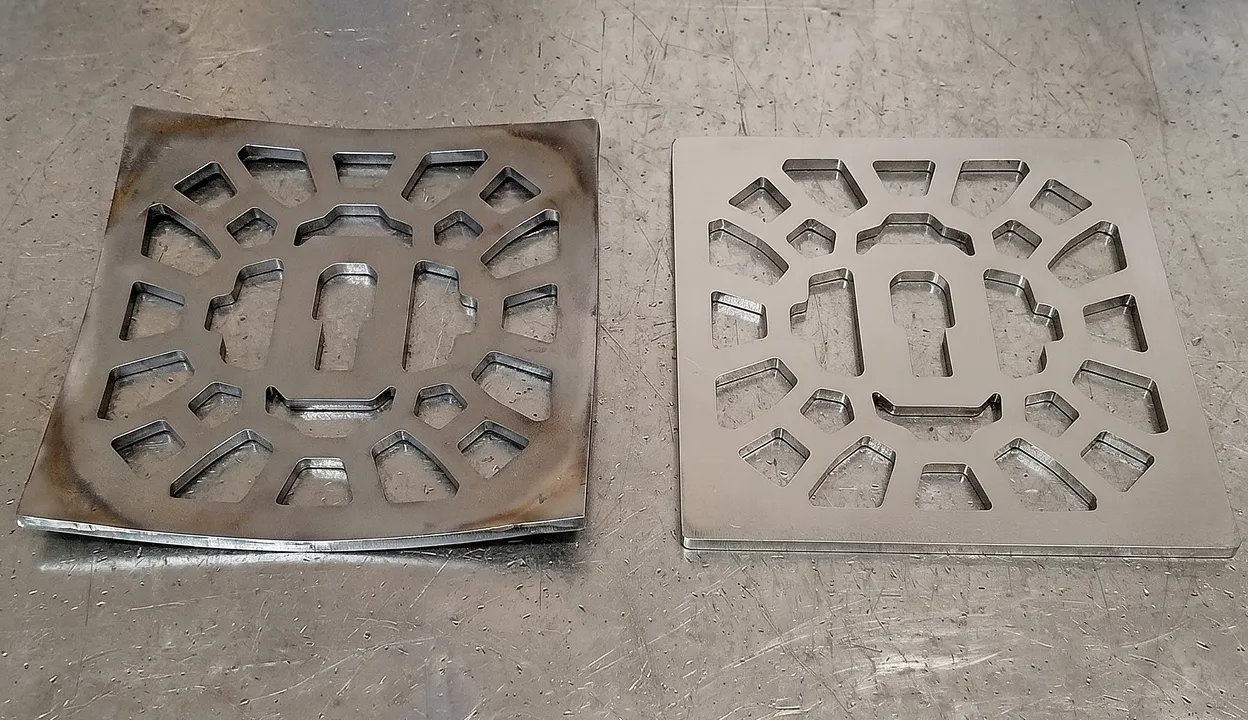

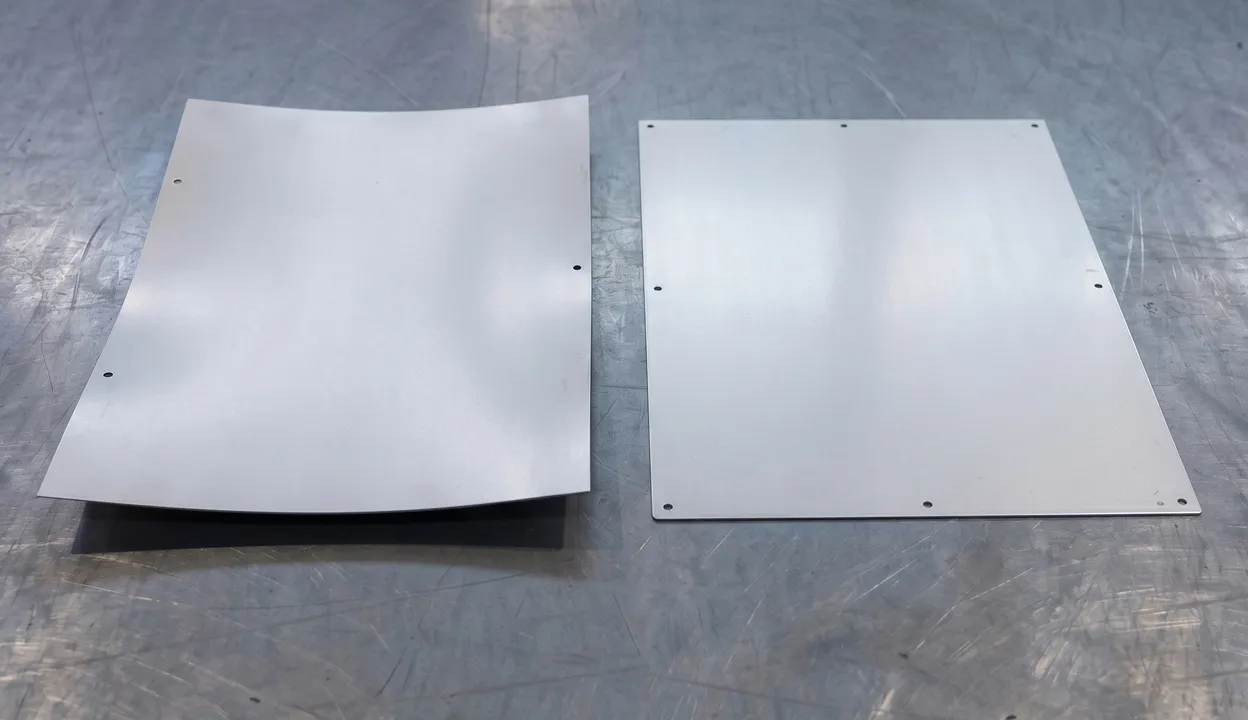

El corte por láser, el corte por plasma y el punzonado introducen tensiones internas y distorsiones térmicas que provocan deformaciones, inclinaciones y retrocesos. Las piezas que no están planas crean problemas en todas las etapas posteriores: un ajuste deficiente de la soldadura, una flexión imprecisa, defectos en el revestimiento y costosas reparaciones. Una niveladora de rodillos de precisión corrige estos problemas haciendo pasar el material a través de una serie de rodillos de compensación que aplican una flexión repetida y controlada, de modo que todas las piezas llegan a la siguiente operación listas para funcionar a la primera.
Construido para Real Demandas de producción

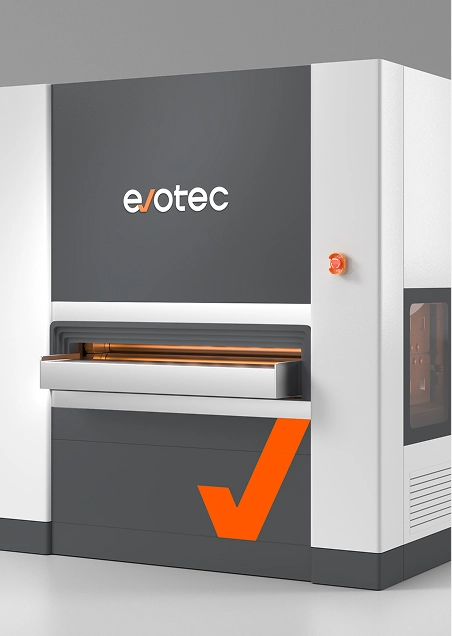

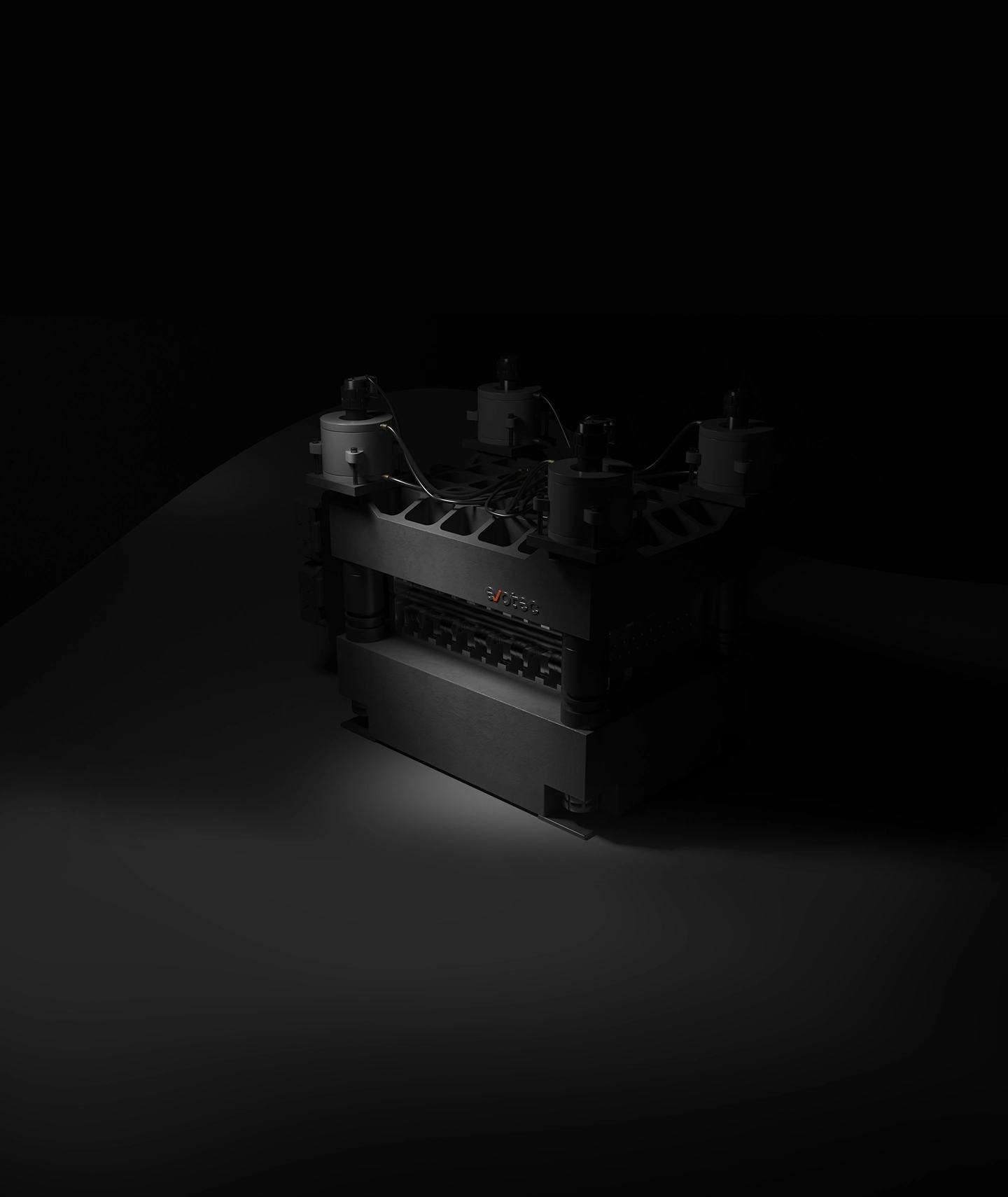

La serie FlatLine de niveladores de rodillos hidráulicos de precisión de Evotec está diseñada para corregir la planitud y liberar la tensión interna en láminas y placas de metal, en toda la gama de procesos de corte y espesores de material que se encuentran en los entornos de fabricación modernos. Ya sea que utilice láminas delgadas cortadas con láser, placas de fabricación mixta o planchas pesadas cortadas con plasma, hay un modelo FlatLine diseñado específicamente para su operación.
Una gama completa para cada grosor
Tres series específicas para cada aplicación cubren todo el espectro, desde láminas de 0,1 mm hasta chapas gruesas de 80 mm.
Chapa metálica delgada
Rango: 0,1 — 10,0 mm
Cutting: Laser, Punching, Stamping
Applications: Foil, flat parts, coil sheet

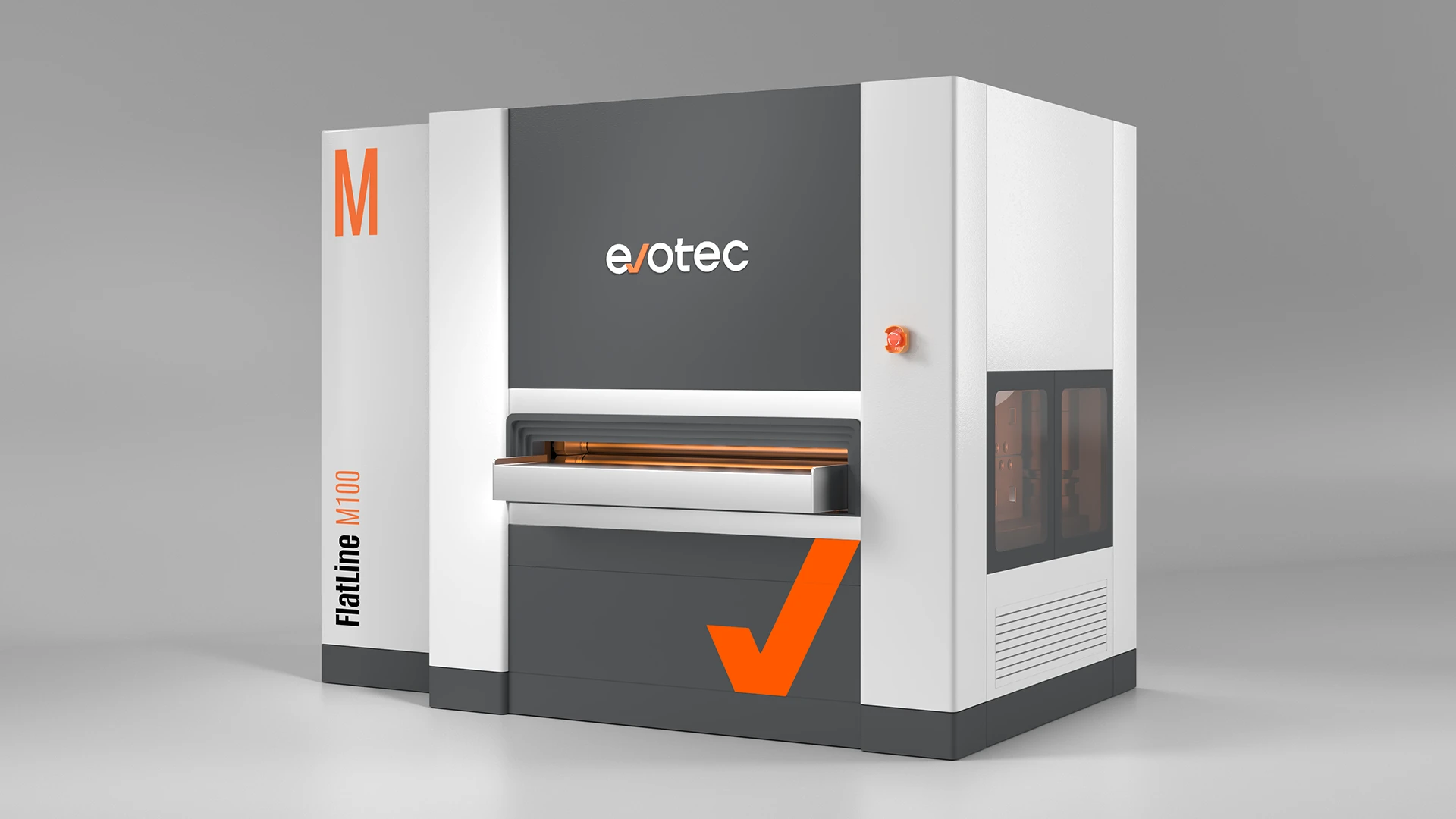

Medium Thickness Sheet & Plate
Range: 1.2 – 30.0mm
Cutting: Laser, Plasma, General Fab
Applications: Mixed runs, coil, flat parts
Heavy Plate
Range: 5.0 – 80.0mm
Cutting: Plasma, Flame, Oxyfuel
Applications: Structural, thick plate fab
Servo Hydraulic Control
Real-time adjustment of roller pressure supports high leveling accuracy across varying material types and thicknesses.
Real-Time Gap Control
Fast hydraulic response with independent valve control maintains stable leveling conditions throughout every pass.
Dual-Motor Independent Drive
Two motors independently drive upper and lower roller units, delivering higher driving force for demanding materials.

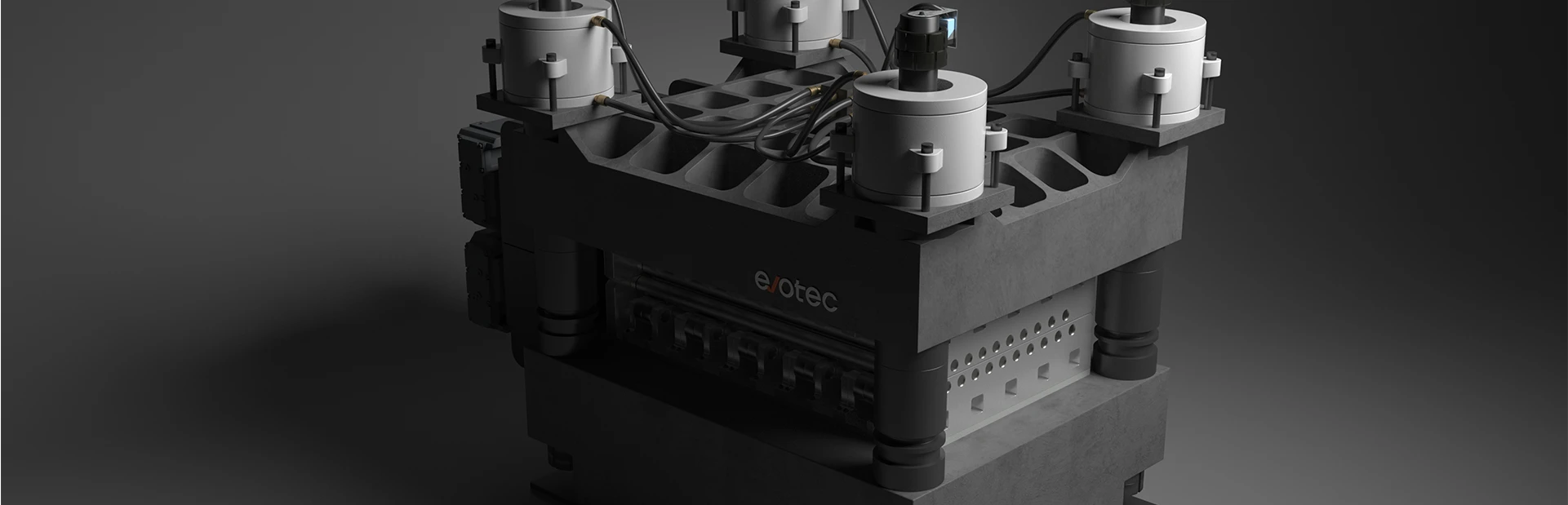

Multi-Roll Staggered Layout
Enhanced stress relief for high-strength materials, ensuring thorough flatness correction in a single pass.
Quick-Change Roller Design
Hydraulic quick-change roller cassette enables fast roller replacement with minimal downtime — keeping your production running.
Thickness Measurement & Flatness Detection
Outcome-focused, simple Integrated laser measurement systems can monitor material thickness and flatness in real time during processing. When enabled, the machine automatically adjusts for springback based on live data.

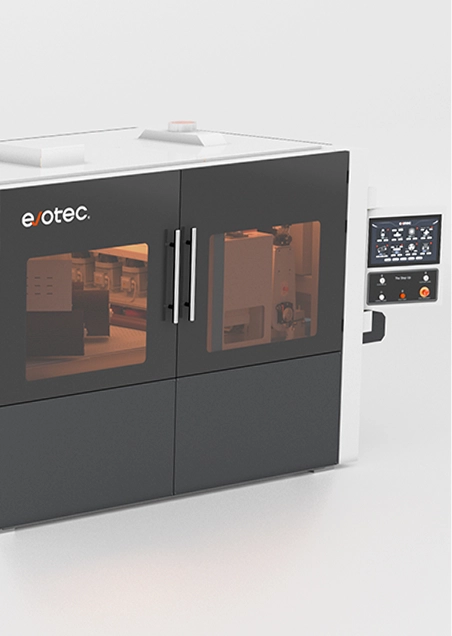

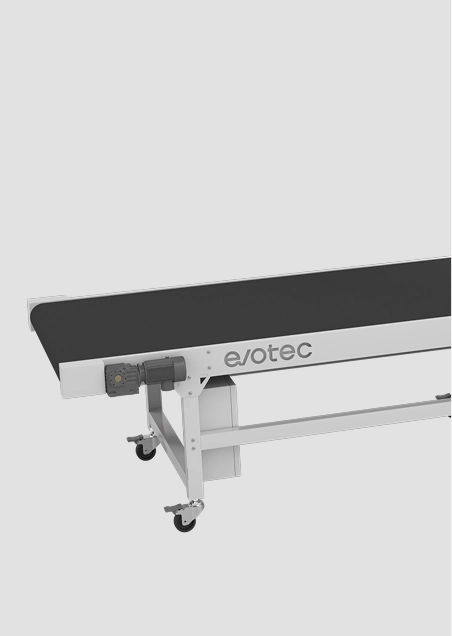

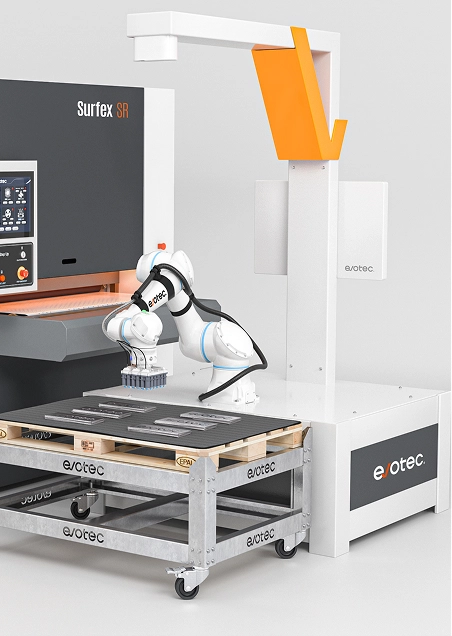

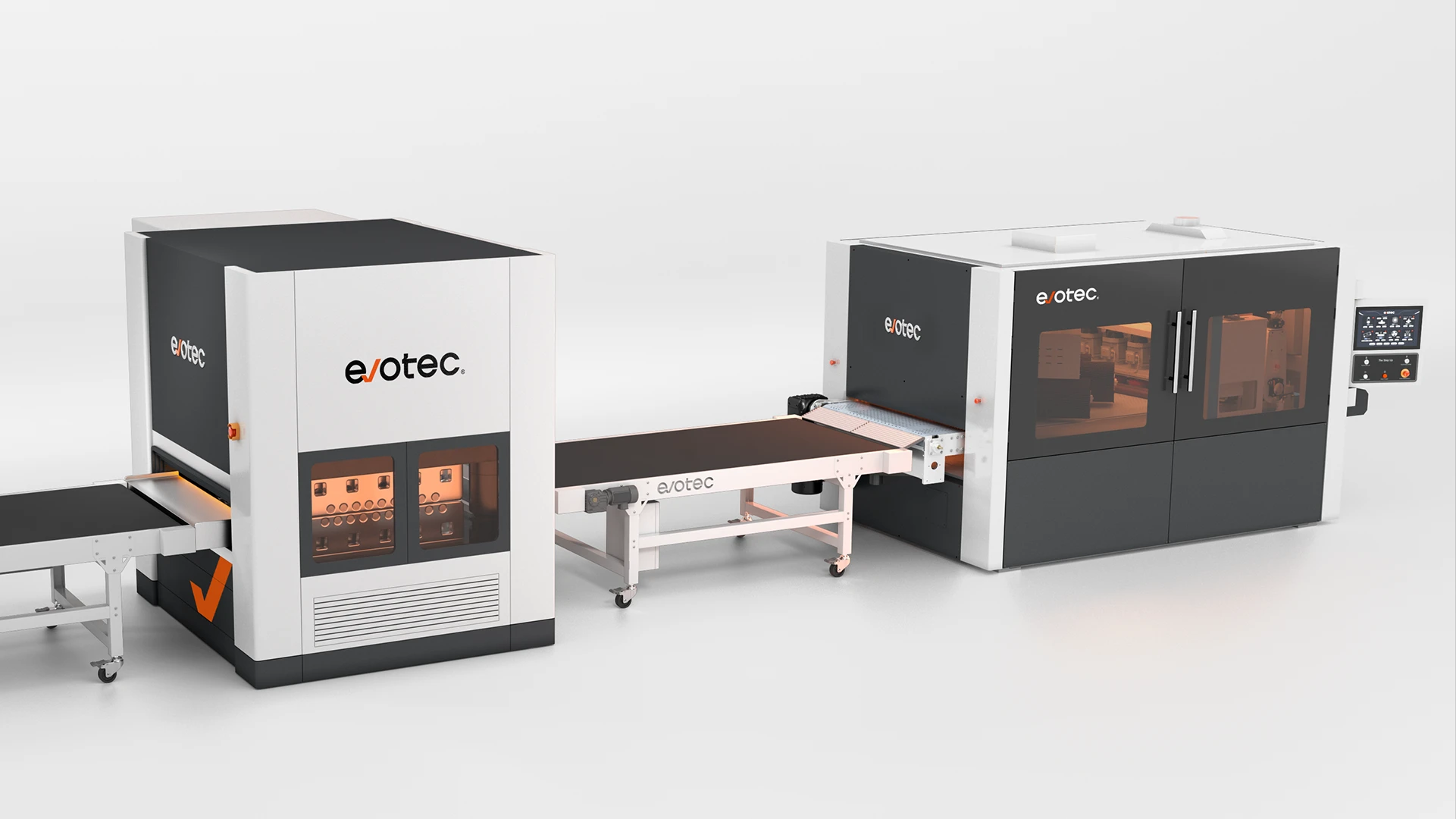

Auto Loading + Deburring + Leveling. One Continuous Line.
Combine deburring and precision leveling into a single automated processing line — eliminating manual handling between operations and delivering parts that are simultaneously deburred, edge-rounded, and perfectly flat.
Who are FlatLine Levelers for?
FlatLine levelers are used across a wide range of metal fabrication environments.
Most Selected Configurations Across Our Customers' Projects
These configurations are frequently selected by customers based on typical precision leveling requirements. Each model combines specific processing modules to match common applications.
Get a configuration recommendation
Selecting the right product is challenging, but we are here to help you. With more than a decade in the deburring and edge rounding automation industry, we’ve seen it all.
FAQs
Material passes between upper and lower rows of leveling rollers. Controlled pressure causes repeated reverse bending, gradually eliminating residual internal stress and original curvature — resulting in flat, stable parts ready for downstream processing.
The three key parameters are material thickness, working width, and cutting process. The L series suits thin sheet from laser, punching, and stamping. The M series handles medium-thickness mixed fabrication. The H series is designed for heavy plasma and flame-cut plate. Contact us and our team will recommend the right model.
Flatness is a geometric measure of how much a surface deviates from a perfect plane. In metal fabrication, poor flatness directly affects every subsequent process: bending, welding, coating, and assembly all depend on parts arriving flat and stress-free.
Flatness describes how much a surface deviates from an ideal plane across its full area. Straightness measures the deviation of a line or axis from a perfectly straight path in a given direction. Both are improved by precision leveling.

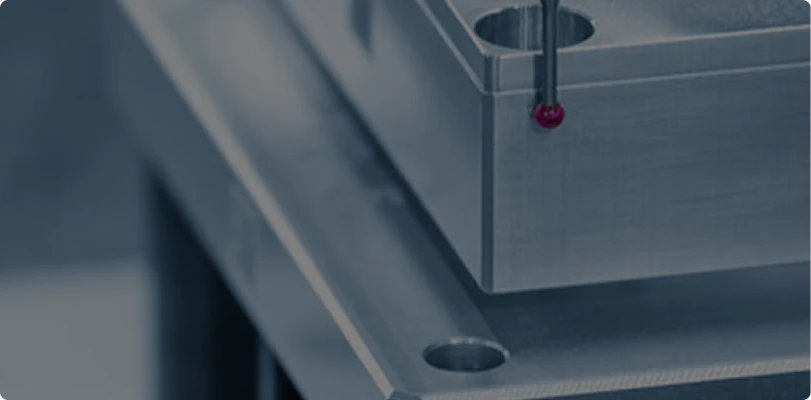

Common tools include granite surface plates, straightedges with feeler gauges, coordinate measuring machines (CMM), and laser flatness measurement systems. The right tool depends on required accuracy and part size.
Key tasks include regular inspection and replacement of worn leveling rollers, keeping the machine clean of oil and debris, replenishing lubrication points as required, and monitoring hydraulic system pressure and fluid levels. The centralized lubrication system and quick-change roller design are both engineered to simplify these tasks.
FlatLine machines are suitable for carbon steel, stainless steel, aluminum, and other common sheet and plate metals. Contact us to confirm suitability for specific materials or high-strength grades.
Yes. Roller layout, working width, control systems, and automation integration can all be customized to match your specific production requirements. Contact us to discuss your exact needs.
Still have questions?
Run your parts through before you decide.
Share your material, thickness, and part geometry — our engineers will map the right machine and can run a test with your actual parts. See the results before you commit.
